Aluminum CNC Machining: Why It's the Most Popular Metal for Rapid Prototyping
Discover the advantages of aluminum in CNC machining for rapid prototyping and its widespread applications.
The Rise of Aluminum in Rapid Prototyping
In the world of rapid prototyping, selecting the right material is crucial for achieving accurate and functional prototypes. Aluminum, particularly through CNC machining, has emerged as the reigning champion due to its unique combination of properties. Its lightweight nature, excellent strength-to-weight ratio, and exceptional machinability make it an ideal choice for engineers and designers looking to quickly iterate on their designs. Unlike other metals that may pose challenges during machining, aluminum allows for faster production cycles, reduced tooling costs, and the creation of complex geometries with high precision. This translates to shorter lead times and more efficient prototyping processes, enabling companies to bring their innovative ideas to life faster.
Furthermore, the cost-effectiveness of aluminum compared to materials like titanium or stainless steel makes it a pragmatic decision for projects with budget constraints. The availability of various aluminum alloys, each with specific characteristics, allows for tailoring the material selection to the specific requirements of the prototype. This flexibility, combined with the ease of surface finishing options like anodizing and powder coating, further solidifies aluminum’s position as the go-to material for rapid prototyping applications.

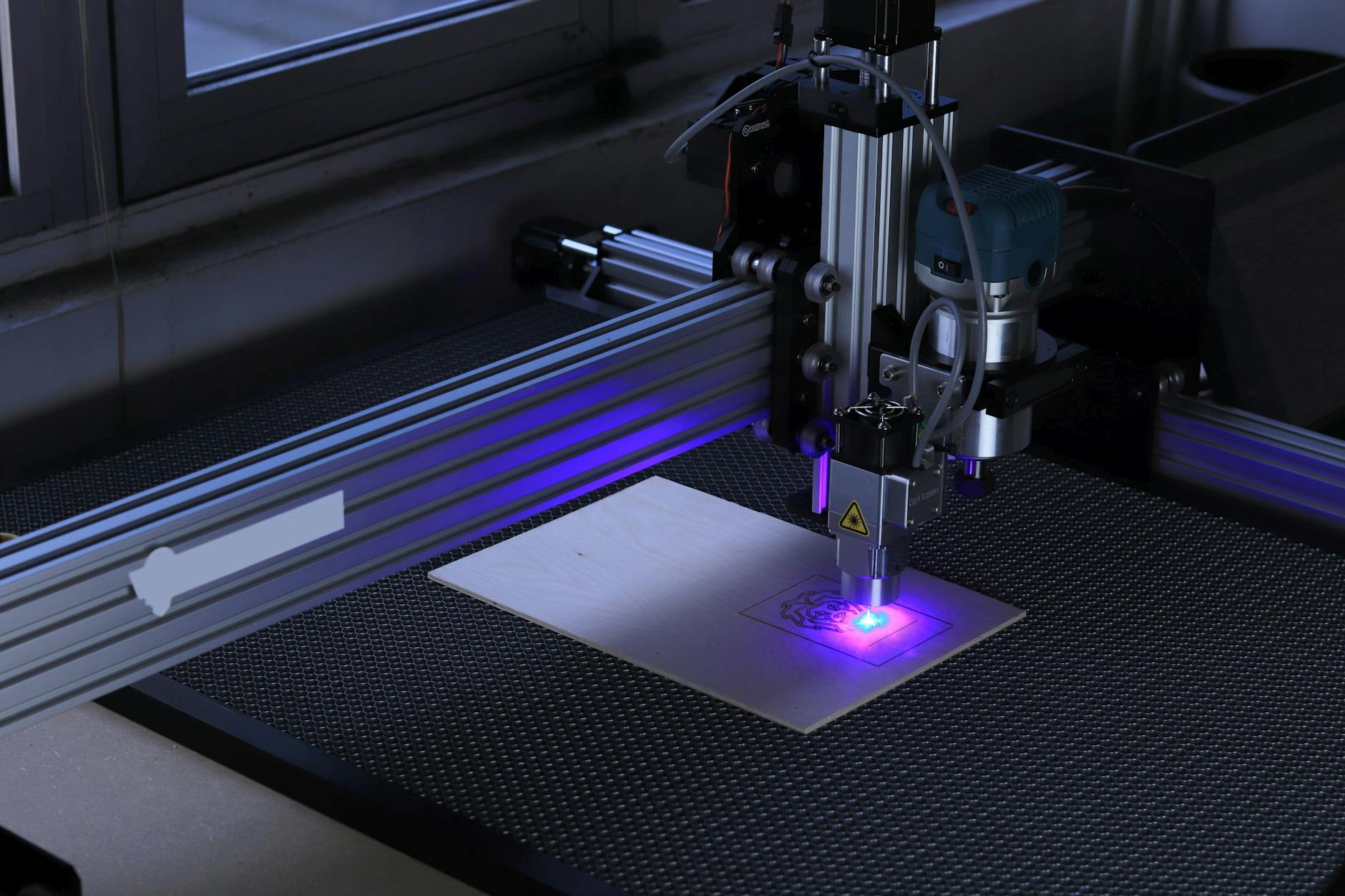

6061 Aluminum: The Workhorse of CNC Machining
6061 aluminum is arguably the most widely used aluminum alloy in CNC machining, and for good reason. This alloy is known for its excellent weldability, corrosion resistance, and moderate strength. Its versatility makes it suitable for a broad range of applications, from aerospace components to consumer electronics enclosures. 6061 aluminum machines cleanly, producing good surface finishes and minimizing tool wear. It also responds well to heat treatment, allowing for further enhancement of its mechanical properties. The ‘T6’ temper, achieved through solution heat treatment and artificial aging, is particularly common, resulting in increased tensile and yield strength.
The superior machinability of 6061 aluminum translates to reduced machining time and lower production costs. Its ability to be easily formed, welded, and anodized adds to its appeal for prototyping. Engineers often choose 6061 aluminum when they need a reliable and readily available material that can meet diverse design requirements. Whether it’s a structural component, a heat sink, or a cosmetic part, 6061 aluminum provides a balance of performance and cost-effectiveness that makes it a staple in the CNC machining industry.
7075 Aluminum: High Strength for Demanding Applications
While 6061 excels in versatility, 7075 aluminum steps in when high strength is paramount. This alloy, primarily composed of aluminum, zinc, magnesium, and copper, boasts one of the highest strength-to-weight ratios among aluminum alloys. It’s frequently employed in applications where structural integrity is critical, such as aerospace components, military equipment, and high-performance automotive parts. 7075 aluminum, especially in the T6 temper, offers exceptional resistance to fatigue and fracture, making it suitable for demanding environments.
However, the increased strength of 7075 comes with a trade-off: it’s generally more challenging to machine than 6061. It requires sharp cutting tools, slower speeds, and careful attention to chip evacuation to prevent work hardening and ensure a good surface finish. While welding 7075 is possible, it is not recommended as it can reduce its corrosion resistance. Despite these challenges, the superior strength of 7075 aluminum makes it an indispensable material for prototypes that need to withstand significant loads or stresses.
Aluminum Machinability: Key Considerations for CNC
The machinability of aluminum is a significant factor in its popularity for CNC machining. Aluminum’s softness allows for high cutting speeds and feed rates, leading to faster production times. However, its ductility can also cause issues like built-up edge (BUE), where material adheres to the cutting tool, affecting surface finish and tool life. To mitigate this, sharp tools with appropriate rake angles, effective coolant, and proper chip management are essential. Selecting the correct cutting parameters, such as spindle speed, feed rate, and depth of cut, is crucial for optimizing the machining process.
Different aluminum alloys exhibit varying levels of machinability. Alloys with higher silicon content, such as some casting alloys, can be abrasive and cause increased tool wear. Conversely, alloys like 2024, which contains copper, may be prone to BUE. Understanding the specific characteristics of the chosen alloy and adjusting machining parameters accordingly is vital for achieving the desired results. Proper workholding techniques are also necessary to prevent vibration and ensure dimensional accuracy. By carefully considering these factors, engineers and machinists can leverage the excellent machinability of aluminum to create high-quality prototypes efficiently.
Diverse Applications of CNC Machined Aluminum Prototypes
The versatility of aluminum CNC machining translates into a vast array of applications across various industries. In the aerospace sector, aluminum prototypes are used for testing new aircraft designs, creating lightweight structural components, and developing interior fittings. The automotive industry relies on aluminum prototypes for engine parts, suspension components, and body panels, allowing for performance optimization and weight reduction. Consumer electronics benefit from aluminum prototypes in the form of enclosures, heat sinks, and structural supports, ensuring both functionality and aesthetic appeal.
Medical device manufacturers utilize aluminum prototypes for surgical instruments, implants, and diagnostic equipment, leveraging the material’s biocompatibility and corrosion resistance. In the industrial sector, aluminum prototypes are employed for machinery parts, tooling fixtures, and robotic components, enabling efficient and reliable operation. The ability to create complex geometries, combined with the material’s favorable properties, makes aluminum CNC machining a valuable tool for innovation and product development across a multitude of fields.
Design Considerations for Aluminum CNC Machining
Designing for aluminum CNC machining requires careful consideration of several factors to ensure manufacturability and optimal performance. Wall thickness is crucial; excessively thin walls can be prone to vibration and deformation during machining, while overly thick walls can lead to material waste and increased machining time. Internal corners should incorporate radii to avoid stress concentrations and facilitate tool access. Deep, narrow pockets can be challenging to machine, requiring specialized tooling and slower cutting speeds. Threaded holes should be designed with standard thread sizes and sufficient thread engagement to ensure adequate strength.
Part orientation during machining is also important. Optimizing the orientation can minimize the number of setups required, reduce machining time, and improve surface finish. Tolerances should be specified realistically, considering the capabilities of the CNC machine and the properties of the aluminum alloy. Surface finish requirements should be clearly defined, as they can impact machining parameters and post-processing operations. By adhering to these design guidelines, engineers can create aluminum prototypes that are both functional and cost-effective.
