Tolerances in CNC Machining: How Tight Can You Go?
Achieving the right fit: Understanding the limits of precision in CNC manufacturing.
Understanding CNC Machining Tolerances
In CNC (Computer Numerical Control) machining, tolerance refers to the permissible variation in the dimensions of a manufactured part. It’s the allowable deviation from the specified or nominal dimension. Expressed as a range (e.g., ±0.005 inches), tolerance dictates the acceptable limits of accuracy for a part to function correctly. Without tolerances, manufacturing would be impossible, as achieving perfectly identical parts every time is unrealistic due to various factors like machine limitations, material properties, and environmental conditions.
Why are tolerances so important? Because they directly impact the functionality, interchangeability, and overall quality of the final product. Specifying appropriate tolerances ensures that parts fit together correctly, perform as intended, and meet the required lifespan. Overly tight tolerances can dramatically increase manufacturing costs, while overly loose tolerances can compromise the product’s performance and reliability. Therefore, understanding and properly defining tolerances are critical for successful CNC machining projects.
This blog post will delve into the world of CNC machining tolerances, exploring the typical tolerance ranges for milling and turning operations, the factors that influence achievable tolerances, and how to determine the right tolerance for your specific application.

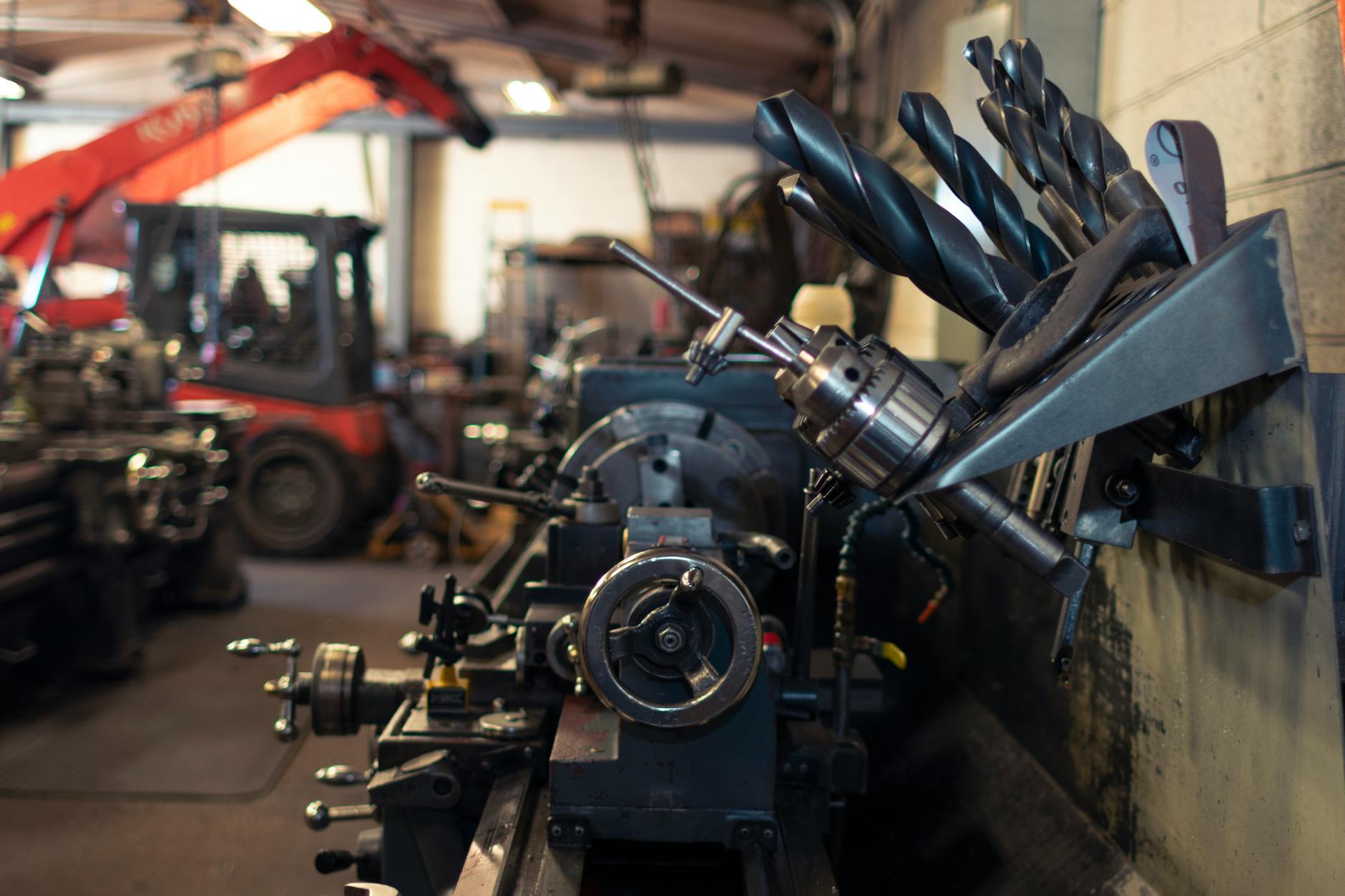

Standard vs. Precision Tolerances in CNC Machining
CNC machining offers a spectrum of tolerance capabilities, generally categorized as standard and precision tolerances. Standard tolerances represent the typical accuracy achievable with common CNC equipment and practices. These are suitable for parts where dimensional variations are not critical to the overall function. For CNC milling, a standard tolerance might be around ±0.005 inches (0.127 mm). For CNC turning, it could be similar, or slightly tighter, depending on the machine and setup.
Precision tolerances, on the other hand, demand significantly tighter control over the machining process. Achieving these tolerances requires advanced CNC equipment, highly skilled machinists, specialized tooling, and meticulous attention to detail. Precision machining often involves multiple passes, slower cutting speeds, and advanced measurement techniques to ensure accuracy. Precision tolerances for CNC milling can range from ±0.001 inches (0.025 mm) to even tighter, while CNC turning can achieve similar or even finer levels of precision. The cost of achieving precision tolerances is substantially higher due to the increased time, resources, and expertise required.
The choice between standard and precision tolerances hinges on the application’s requirements. Parts that require tight fits, high performance, or critical functionality will necessitate precision tolerances. Simpler parts with less stringent requirements can often be manufactured cost-effectively using standard tolerances.
Typical Tolerances for CNC Milling
CNC milling, a subtractive manufacturing process that uses rotating cutting tools to remove material from a workpiece, offers a range of achievable tolerances. As mentioned previously, a standard tolerance for CNC milling typically falls around ±0.005 inches (0.127 mm). This is generally achievable on most modern CNC milling machines with proper setup and tooling. However, this value can vary depending on the specific machine, material, and part geometry. Factors like the rigidity of the machine, the condition of the cutting tools, and the stability of the workpiece all play a role.
For precision milling, tolerances can be significantly tighter, ranging from ±0.001 inches (0.025 mm) to ±0.0005 inches (0.0127 mm) or even finer in specialized cases. Achieving these tight tolerances requires advanced techniques like thermal stabilization of the machine and workpiece, vibration damping, and highly precise measurement and calibration procedures. It’s essential to consult with experienced machinists to determine the feasibility and cost implications of achieving such tight tolerances on a specific part.
Furthermore, the type of milling operation also influences achievable tolerances. For example, surface finishing operations like grinding or honing can achieve even tighter tolerances than roughing or semi-finishing operations.
Typical Tolerances for CNC Turning
CNC turning, which involves rotating a workpiece against a stationary cutting tool, also offers a range of tolerance capabilities. Similar to milling, a standard tolerance for CNC turning is around ±0.005 inches (0.127 mm). However, due to the inherent stability of the turning process, it is often possible to achieve slightly tighter tolerances in turning compared to milling with the same equipment. Factors such as the rigidity of the lathe, the type of cutting tool, and the material being machined all influence the achievable tolerance.
Precision turning can achieve tolerances as tight as ±0.0005 inches (0.0127 mm) or even finer in specialized applications. Achieving these levels of precision requires advanced CNC lathes with features like thermal compensation, vibration damping, and high-resolution feedback systems. Skilled machinists with expertise in precision turning techniques are also crucial for success. The cost of achieving precision tolerances in turning is generally higher due to the increased complexity and time required.
Internal diameters and external diameters can often be held to tighter tolerances than features like threads or grooves. The geometry of the part and the specific turning operations involved will also influence the achievable tolerance. For instance, finishing operations like boring or honing can achieve extremely tight tolerances on internal diameters.
Factors Affecting Achievable Tolerances
Several factors influence the achievable tolerances in CNC machining. The machine’s capabilities are paramount. A high-quality CNC machine with robust construction, precise control systems, and thermal stability is essential for achieving tight tolerances. The condition of the cutting tools is also critical. Worn or dull tools can lead to inaccuracies and poor surface finishes. Regular tool inspection and replacement are necessary to maintain optimal performance.
The material being machined plays a significant role. Some materials are easier to machine to tight tolerances than others. For example, softer materials like aluminum are generally easier to machine accurately than harder materials like stainless steel or titanium. Environmental factors, such as temperature fluctuations and vibrations, can also affect machining accuracy. Controlling the temperature in the machining environment and minimizing vibrations are essential for precision machining.
Finally, the skill and experience of the machinist are crucial. A skilled machinist understands the nuances of the machining process and can make adjustments to optimize performance and achieve the desired tolerances. Proper workholding, toolpath generation, and cutting parameters are all critical aspects of achieving tight tolerances.
Specifying the Right Tolerances for Your Project
Determining the appropriate tolerances for your CNC machining project is a crucial step that directly impacts the cost and functionality of the final product. Start by carefully considering the functional requirements of the part. What is the purpose of the part? What are the critical dimensions that must be accurate for the part to function correctly? Identify these critical dimensions and assign tolerances accordingly. For non-critical dimensions, looser tolerances can be specified to reduce manufacturing costs.
Consider the assembly requirements. How does the part fit with other components? What are the required clearances or interferences? These factors will influence the tolerances that must be specified. Consult with your design and manufacturing teams to determine the optimal tolerances for each dimension. Overly tight tolerances can significantly increase manufacturing costs without providing any functional benefit. Conversely, overly loose tolerances can compromise the performance and reliability of the final product.
Communicate clearly with your CNC machining service provider. Provide them with detailed drawings and specifications that clearly indicate the required tolerances. Discuss the manufacturing process and any potential challenges in achieving the desired tolerances. A collaborative approach will help ensure that your project is successful and that the final product meets your requirements.
