Design for Manufacturability in CNC Machining: What You Need to Know
Mastering Design for Manufacturability (DFM) is crucial for efficient and cost-effective CNC machining.
Understanding Design for Manufacturability (DFM) in CNC Machining
Design for Manufacturability (DFM) is the process of designing parts specifically to optimize manufacturing processes. In CNC machining, DFM considers the capabilities and limitations of CNC machines, cutting tools, and materials to ensure parts can be produced efficiently, accurately, and at a reasonable cost. Ignoring DFM principles can lead to increased production time, higher material waste, and ultimately, more expensive parts. By implementing DFM early in the design phase, engineers can identify and address potential manufacturing challenges before they become costly problems.
DFM encompasses a variety of considerations, from material selection and part geometry to machining tolerances and surface finish requirements. It’s a holistic approach that balances design intent with manufacturing realities. Effective DFM requires a strong understanding of CNC machining processes, including milling, turning, drilling, and grinding, as well as the properties of different materials, such as aluminum, steel, and plastics.
The benefits of DFM extend beyond cost savings. It can also improve part quality, reduce lead times, and enhance overall manufacturing efficiency. By designing parts with manufacturability in mind, engineers can streamline the production process and minimize the risk of errors or defects.

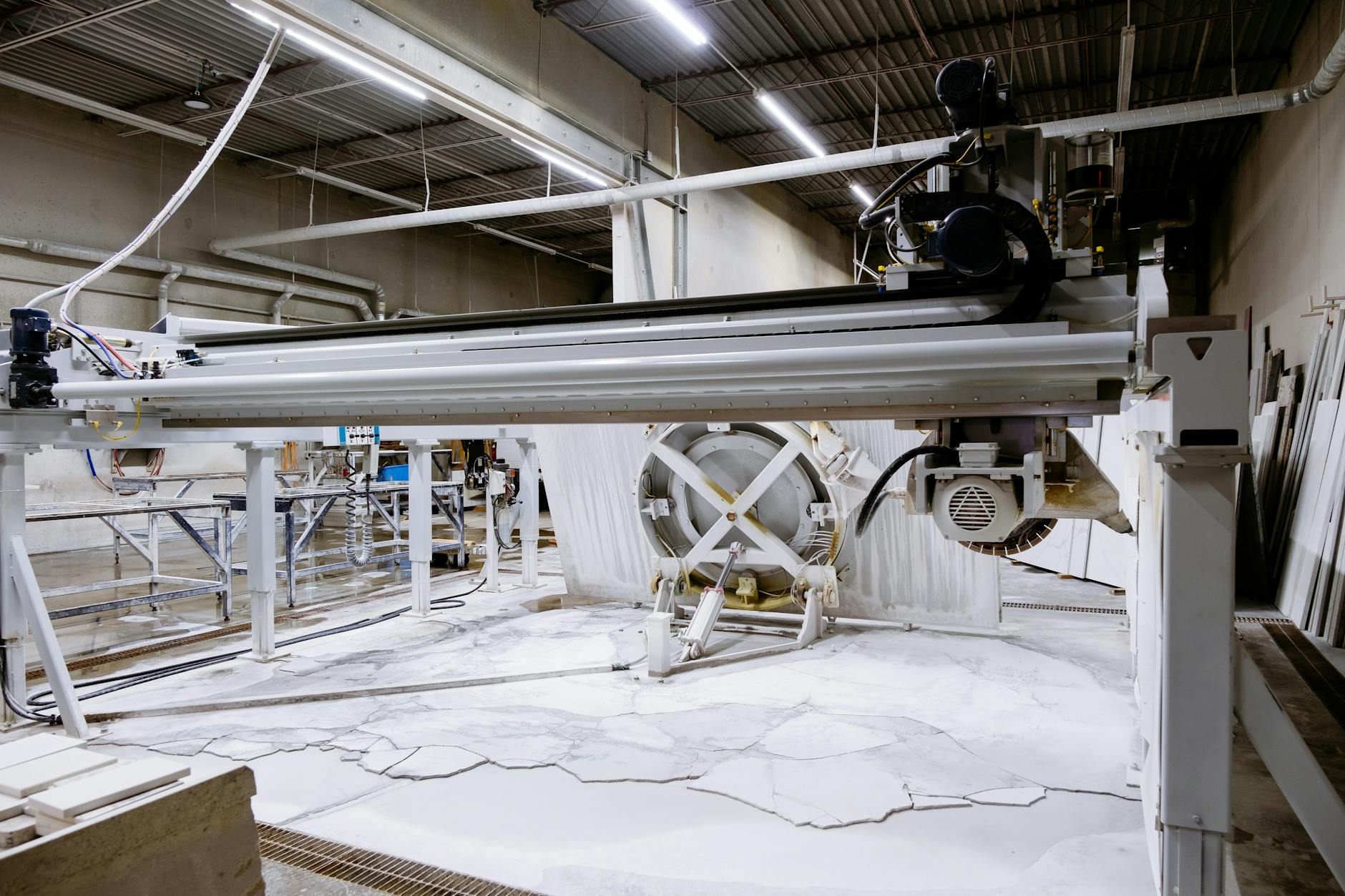

Wall Thickness Considerations
Wall thickness is a critical factor in CNC part design. Thin walls can be prone to vibration during machining, leading to poor surface finish, dimensional inaccuracies, and even tool breakage. Conversely, excessively thick walls can increase material consumption and machining time. The optimal wall thickness depends on several factors, including the material being machined, the size and geometry of the part, and the cutting parameters used.
As a general guideline, aim for a minimum wall thickness that is at least 1.5 to 2 times the diameter of the smallest cutting tool used. For aluminum, a minimum wall thickness of 0.060 inches (1.5 mm) is often recommended, while for steel, a minimum of 0.080 inches (2 mm) is generally preferred. These are just starting points, and the ideal wall thickness may need to be adjusted based on specific design requirements and manufacturing capabilities. Ribs and gussets can be added to reinforce thin walls and improve their stiffness without significantly increasing material usage. Sharp internal corners should be avoided as they create stress concentrations and can be difficult to machine. Instead, use fillets to blend adjacent walls and distribute stress more evenly.
When designing parts with varying wall thicknesses, gradual transitions are preferred to avoid abrupt changes in stiffness. This helps to minimize vibration and improve machining stability. It’s also important to consider the aspect ratio of thin walls (length/thickness). High aspect ratios can make walls more susceptible to deflection during machining. In such cases, it may be necessary to increase the wall thickness or provide additional support.

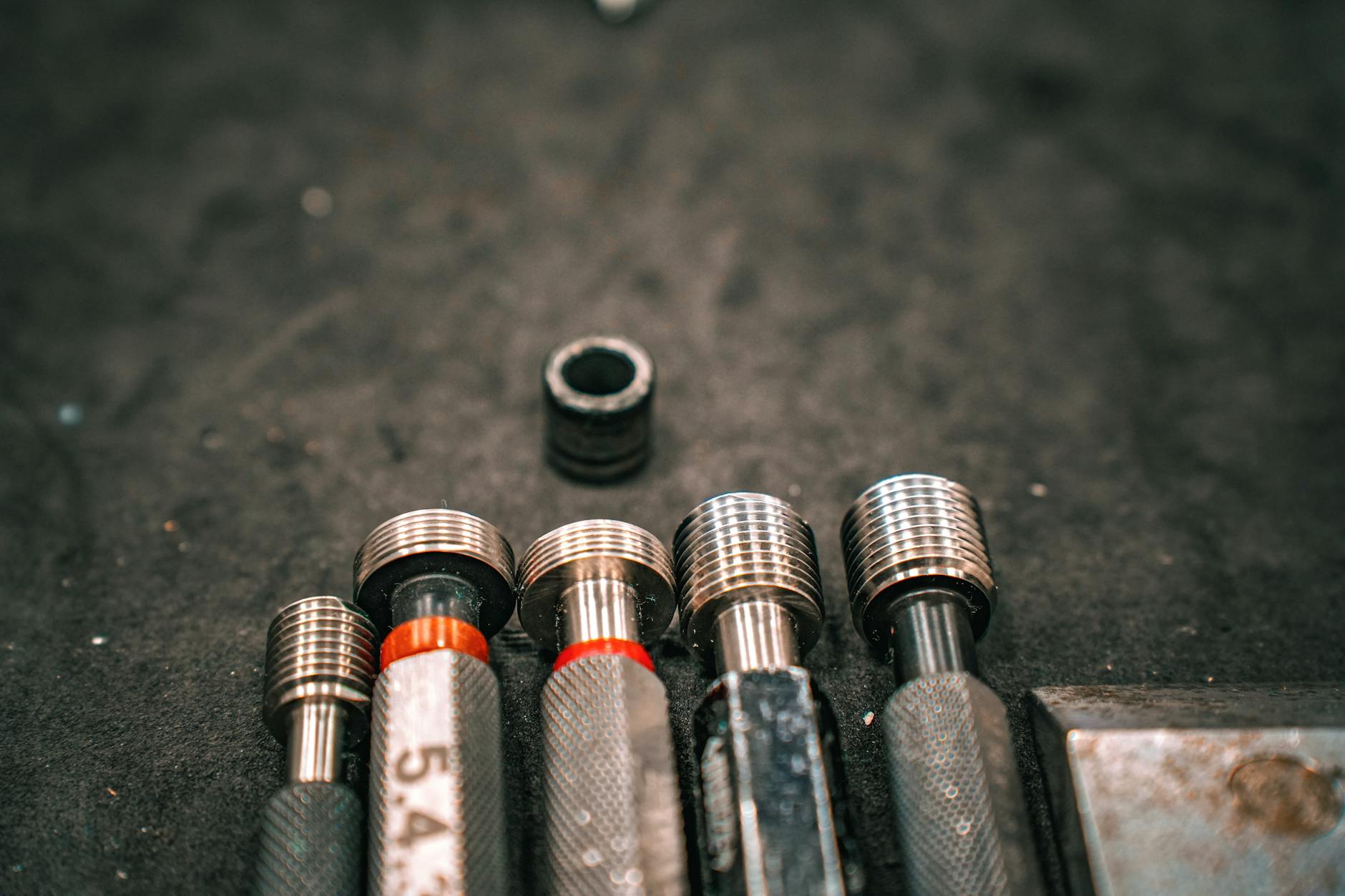

Tolerances: Balancing Precision and Cost
Tolerances define the acceptable variation in dimensions and features of a machined part. Specifying unnecessarily tight tolerances can significantly increase machining costs, as it requires more precise equipment, skilled operators, and longer machining times. Therefore, it’s essential to carefully consider the functional requirements of each feature and specify tolerances that are only as tight as necessary. Over-tolerancing is a common mistake that can lead to significant cost overruns.
Standard tolerances for CNC machining typically range from +/- 0.005 inches (0.13 mm) to +/- 0.001 inches (0.025 mm), depending on the machining process and material. Tighter tolerances can be achieved, but they will generally come at a higher cost. When specifying tolerances, it’s important to consider the capabilities of the CNC machine and the cutting tools being used. Also, consider the potential for thermal expansion and contraction of the material during machining.
Geometric Dimensioning and Tolerancing (GD&T) is a standardized system for defining and communicating tolerances on engineering drawings. GD&T provides a more precise and unambiguous way of specifying tolerances compared to traditional coordinate tolerancing. Using GD&T can help to reduce manufacturing errors and improve part quality. Consult with your CNC machining provider to determine appropriate tolerances for your specific application. They can provide valuable insights based on their experience and expertise.
Undercuts: Design Considerations and Alternatives
Undercuts are features that cannot be machined with a standard two- or three-axis CNC mill without special tooling or techniques. They often require the use of specialized tools, such as T-cutters or dovetail cutters, or the use of multi-axis CNC machines. Machining undercuts can be more complex and time-consuming than machining standard features, which can increase production costs. Therefore, it’s generally best to avoid undercuts in CNC part design whenever possible.
If an undercut is necessary for functional reasons, consider alternative design approaches that can eliminate the need for it. For example, you might be able to redesign the part to use a simpler feature that achieves the same functionality without requiring an undercut. Another option is to split the part into multiple components that can be machined separately and then assembled together. This approach can sometimes be more cost-effective than machining a single part with an undercut.
When undercuts are unavoidable, it’s important to design them with manufacturability in mind. Make sure the undercut is accessible to the cutting tool and that there is sufficient clearance for the tool to enter and exit the cut. Avoid sharp corners and tight radii in the undercut, as these can be difficult to machine. Consider using a larger radius for the undercut, as this will allow for a larger and more robust cutting tool to be used. Communicate clearly with your CNC machining provider about the undercut requirements and ensure that they have the necessary tooling and expertise to machine it successfully.
Ensuring Tool Access for Efficient Machining
Tool access refers to the ability of the cutting tool to reach all areas of the part that need to be machined. Poor tool access can lead to inefficient machining, increased production time, and poor surface finish. When designing CNC parts, it’s essential to consider tool access and ensure that all features are easily accessible to the cutting tool. Deep, narrow cavities and features with restricted access can be particularly challenging to machine.
To improve tool access, consider using larger radii for internal corners and fillets. This will allow for the use of larger cutting tools, which can remove material more quickly and efficiently. Avoid designing features that are hidden behind other features or that are difficult to reach with a standard cutting tool. If possible, orient the part in a way that minimizes the need for long, slender tools, as these can be prone to vibration and deflection. Consider the reach of the available cutting tools and ensure that they are long enough to reach all areas of the part.
The use of multi-axis CNC machines can significantly improve tool access, as they allow the cutting tool to approach the part from multiple angles. However, multi-axis machining can be more expensive than standard three-axis machining. Therefore, it’s important to weigh the benefits of improved tool access against the increased cost. Work closely with your CNC machining provider to optimize tool access and minimize machining time. They can provide valuable insights based on their experience and expertise.
