How Heat Treatment Affects CNC Machined Metal Parts
Understanding the metallurgical transformations that enhance the durability and performance of precision components.
Introduction to Heat Treatment of CNC Machined Parts
CNC machining offers unparalleled precision in shaping metal components, but the resulting parts often require further processing to achieve desired mechanical properties. Heat treatment is a crucial secondary operation that alters the microstructure of metals, enhancing their strength, hardness, ductility, and resistance to wear and corrosion. This process involves controlled heating and cooling cycles, carefully tailored to induce specific metallurgical transformations. The selection of a suitable heat treatment method depends on the alloy composition, desired performance characteristics, and the intended application of the machined part. Proper heat treatment is essential for ensuring the longevity and reliability of CNC machined components in demanding environments.
Without appropriate heat treatment, CNC machined parts may exhibit residual stresses, inadequate hardness, or insufficient resistance to fatigue, potentially leading to premature failure. This article delves into the common heat treatment methods applied to CNC machined metal parts, including annealing, hardening, and stress relief, explaining their underlying principles and their impact on material properties.

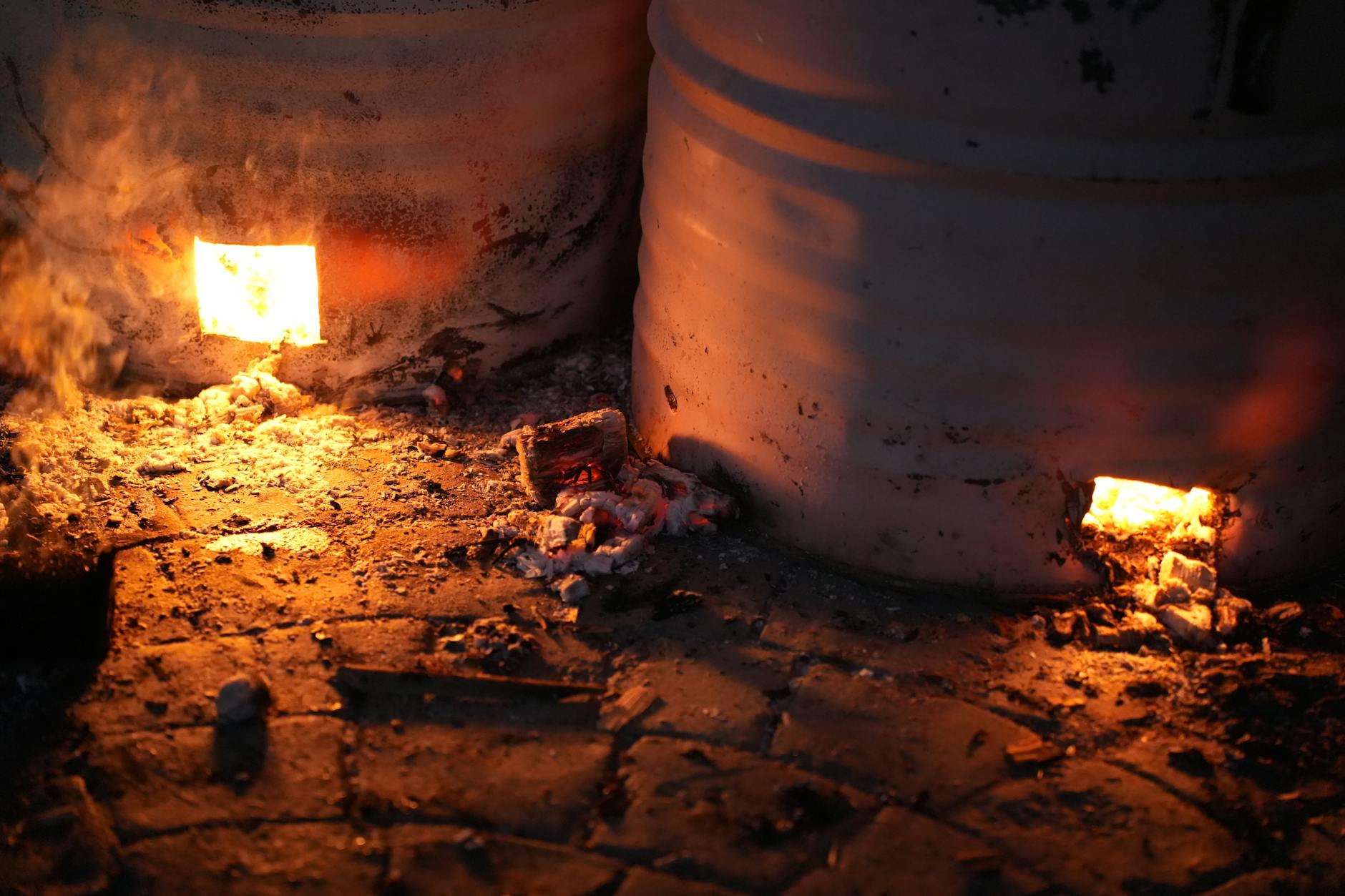

Annealing: Softening and Ductilizing Machined Parts
Annealing is a heat treatment process designed to soften metals, improve their ductility, and relieve internal stresses. It involves heating the metal to a specific temperature, holding it at that temperature for a predetermined period, and then slowly cooling it to room temperature. The specific temperature and holding time depend on the metal alloy and the desired outcome.
In CNC machining, annealing is often performed to remove the work hardening induced by the machining process itself. Work hardening increases the hardness and brittleness of the metal, making it difficult to perform subsequent operations such as bending or forming. Annealing restores the metal’s original ductility, allowing for further processing without the risk of cracking or fracture. Furthermore, annealing can refine the grain structure of the metal, enhancing its machinability and improving its response to other heat treatments.
The slow cooling rate in annealing promotes the formation of larger, softer grains, reducing hardness and increasing ductility. Different types of annealing, such as full annealing, process annealing, and spheroidizing, are used depending on the specific requirements of the material and the desired properties.

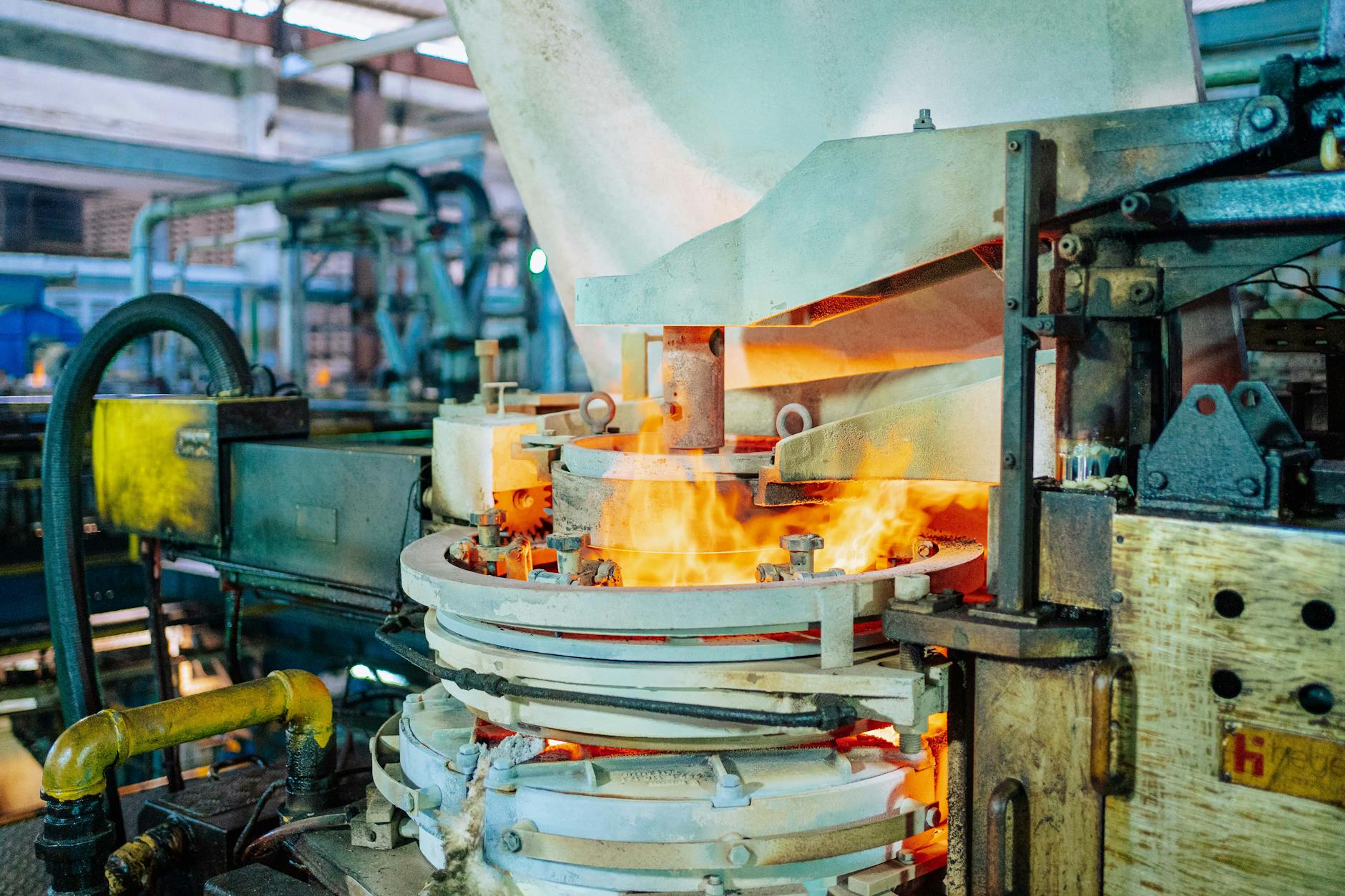

Hardening: Increasing Strength and Wear Resistance
Hardening is a heat treatment process that increases the hardness and strength of a metal. This is achieved by heating the metal to a high temperature, typically above its austenitizing temperature, holding it at that temperature to allow for the formation of austenite, and then rapidly cooling it, usually by quenching in water, oil, or air. The rapid cooling transforms the austenite into martensite, a hard and brittle phase.
For CNC machined parts, hardening is often applied to increase their wear resistance, allowing them to withstand abrasive conditions and extend their service life. Hardening is commonly used on parts such as gears, shafts, and cutting tools. However, the hardening process can also increase brittleness, making the part more susceptible to cracking under impact or stress. Therefore, hardening is often followed by tempering to reduce brittleness and improve toughness.
Case hardening is a variation of hardening that selectively hardens the surface of a metal part while leaving the core relatively soft. This is achieved by introducing carbon or nitrogen into the surface layer of the metal at high temperatures, followed by quenching. Case hardening is commonly used on parts that require high wear resistance on the surface but also need to be tough enough to withstand impact loads.
Stress Relief: Minimizing Distortion and Cracking
Stress relief is a heat treatment process used to reduce internal stresses in a metal part without significantly altering its mechanical properties. Internal stresses can arise from various manufacturing processes, including machining, welding, and casting. These stresses can lead to distortion, cracking, and premature failure of the part, especially under load or in corrosive environments.
Stress relief involves heating the metal to a moderate temperature, typically below its recrystallization temperature, holding it at that temperature for a period of time, and then slowly cooling it to room temperature. The holding time allows the internal stresses to relax and redistribute themselves, reducing their magnitude. The slow cooling rate prevents the reintroduction of stresses.
For CNC machined parts, stress relief is often performed after rough machining to remove stresses induced by the cutting forces. This allows for more accurate finishing operations and reduces the risk of distortion during subsequent heat treatments or service. Stress relief is also beneficial for parts that will be subjected to welding or other joining processes, as it minimizes the risk of cracking in the heat-affected zone.
Selecting the Right Heat Treatment for CNC Machined Parts
Choosing the appropriate heat treatment method is critical for achieving the desired performance characteristics of CNC machined metal parts. The selection process should consider several factors, including the alloy composition, the part’s geometry, the intended application, and the desired mechanical properties. Consulting with a metallurgist or heat treatment specialist is often recommended to ensure that the selected heat treatment process is optimized for the specific requirements of the part.
For example, parts that require high wear resistance may benefit from hardening or case hardening, while parts that need to withstand impact loads may require a combination of hardening and tempering. Parts that are prone to distortion or cracking may need stress relief before or after other heat treatment processes. Furthermore, the specific parameters of the heat treatment process, such as the heating temperature, holding time, and cooling rate, must be carefully controlled to achieve the desired results.
Properly executed heat treatment can significantly enhance the performance and longevity of CNC machined metal parts, making it an essential step in the manufacturing process. By understanding the principles of annealing, hardening, and stress relief, engineers and manufacturers can make informed decisions about heat treatment and ensure that their parts meet the required specifications.
