Watertight 3D Printed Parts: Which Technologies Can Achieve It?
Achieving truly sealed enclosures with 3D printing requires careful technology and material selection.
The Challenge of Watertight 3D Printing
Creating watertight parts using 3D printing presents unique challenges. Unlike traditional manufacturing methods like injection molding, 3D printed parts are inherently porous due to the layer-by-layer manufacturing process. This porosity can lead to leaks, making it unsuitable for applications requiring fluid containment or protection from moisture. Achieving a truly sealed part necessitates careful consideration of the 3D printing technology, material properties, and post-processing techniques. The goal is to minimize or eliminate pathways for fluid to penetrate the part’s structure.
The success of watertight 3D printing hinges on several factors. Layer adhesion is critical; weak layer bonds create channels for leakage. Material density also plays a significant role; materials with inherent porosity will require additional sealing steps. Finally, part geometry can influence watertightness. Complex geometries with intricate internal features can be difficult to seal effectively. Therefore, understanding these challenges is the first step in selecting the appropriate 3D printing technology and implementing effective sealing strategies.

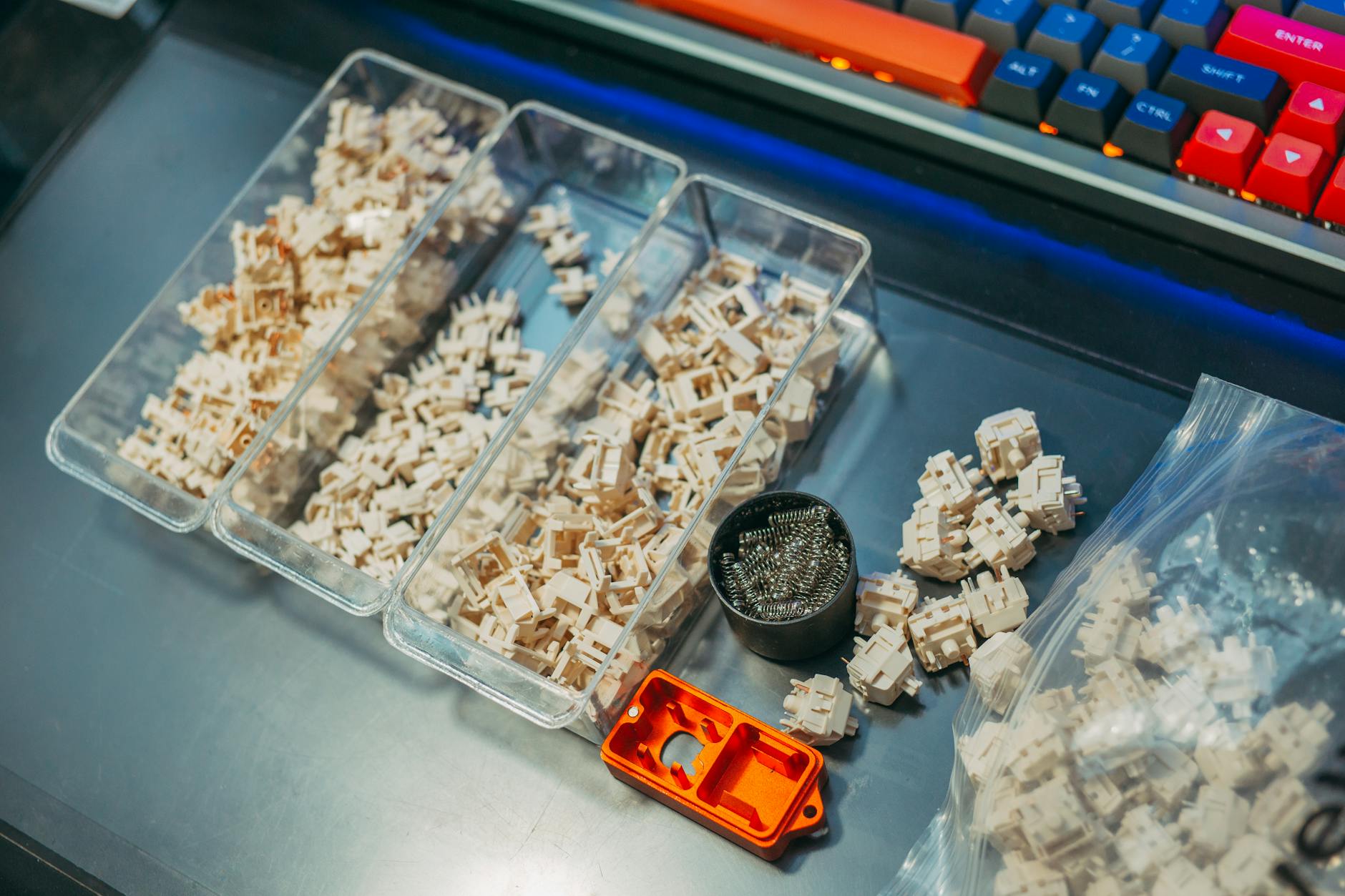

Multi Jet Fusion (MJF) for Watertight Parts
Multi Jet Fusion (MJF) is a powder bed fusion technology known for producing parts with high density and isotropic mechanical properties. While MJF parts are generally less porous than those produced by Fused Deposition Modeling (FDM), they are not inherently watertight. The typical material used in MJF, PA12, possesses a degree of porosity that can allow moisture to permeate over time. However, MJF offers advantages in terms of design freedom and scalability, making it a viable option for watertight applications with appropriate post-processing.
To achieve watertightness with MJF, sealing techniques are essential. Vapor smoothing is a common method, where the part is exposed to a chemical vapor that melts the surface, reducing porosity and improving surface finish. Coating with sealants, such as epoxy resins, is another effective approach. These coatings fill the pores and create a barrier against fluid penetration. Careful process control during printing, including optimizing layer thickness and part orientation, can also contribute to improved density and reduced porosity. Ultimately, MJF can produce watertight parts, but it requires a dedicated focus on post-processing and material selection.
Stereolithography (SLA) for Superior Sealing
Stereolithography (SLA) is a resin-based 3D printing technology that excels in producing parts with smooth surfaces and fine details. Due to the nature of the process, SLA parts tend to have lower porosity compared to powder-based methods like MJF. The liquid resin is cured layer by layer using a laser, resulting in a more homogenous structure. This makes SLA a strong contender for applications requiring watertightness. However, the specific resin used plays a crucial role in achieving a reliable seal.
Certain SLA resins are formulated to be inherently watertight after curing. These resins typically exhibit low moisture absorption and high chemical resistance. Furthermore, the smooth surface finish achievable with SLA minimizes the need for extensive post-processing. In some cases, a simple clear coat or sealant may be sufficient to ensure complete watertightness. The precision of SLA also allows for the creation of intricate sealing features, such as O-ring grooves, directly within the printed part. This eliminates the need for secondary machining operations and simplifies the assembly process. When watertightness is a primary concern, SLA offers a compelling solution, particularly with specialized resins designed for this purpose.
Resin Printing (DLP/LCD) and Material Considerations
Digital Light Processing (DLP) and Liquid Crystal Display (LCD) are other resin-based 3D printing technologies that share similarities with SLA in terms of producing parts with fine details and smooth surfaces. The primary difference lies in the light source used to cure the resin. DLP uses a projector, while LCD uses an array of LEDs shining through an LCD screen. Like SLA, DLP and LCD printing can achieve watertightness, but the choice of resin is paramount.
When selecting a resin for watertight applications, consider its water absorption rate, chemical resistance, and tensile strength. Resins with low water absorption will minimize the risk of swelling and deformation, which can compromise the seal. Chemical resistance is important if the part will be exposed to harsh fluids or chemicals. High tensile strength ensures the part can withstand pressure without cracking or leaking. Some resins are specifically formulated for creating watertight enclosures, offering enhanced performance in these areas. Experimentation with different resin formulations and post-curing techniques is often necessary to achieve optimal results. A thorough understanding of the material properties and their impact on watertightness is essential for successful resin-based 3D printing.
Post-Processing Techniques for Enhanced Watertightness
Regardless of the 3D printing technology used, post-processing techniques can significantly enhance the watertightness of printed parts. Several options are available, each with its own advantages and disadvantages. Vapor smoothing, as mentioned earlier, is effective for reducing surface porosity in MJF and other powder-based parts. Coating with sealants, such as epoxy or polyurethane resins, is a versatile approach that can be applied to a wide range of materials. These coatings fill surface imperfections and create a protective barrier against fluid penetration.
Another option is to use specialized sealing compounds designed for 3D printed parts. These compounds are typically applied to joints and seams to create a watertight seal. For parts with complex geometries, vacuum impregnation can be used to force sealant into the pores of the material. This technique is particularly effective for sealing internal cavities and hard-to-reach areas. The choice of post-processing technique will depend on the specific material, geometry, and application requirements. Careful consideration should be given to the chemical compatibility of the sealant with the printed material to avoid any adverse reactions.
Design Considerations for Watertight Enclosures
Designing parts specifically for watertightness can significantly improve the chances of success. Incorporating features such as O-ring grooves or tongue-and-groove joints can create a more robust seal. Sharp corners and edges should be avoided, as these areas are prone to stress concentrations and potential cracking. Instead, use fillets and radii to distribute stress more evenly. Wall thickness is also an important consideration. Thicker walls provide greater resistance to deformation and reduce the risk of leakage.
When designing enclosures, consider the method of assembly and sealing. Screws, bolts, or snap-fit features can be used to hold the parts together, but these joints must be properly sealed to prevent leaks. Using a gasket or sealant between the mating surfaces is essential. For applications involving high pressure, consider using interlocking features to provide additional mechanical support. Finally, always test the finished part for leaks before putting it into service. This can be done by submerging the part in water and looking for bubbles or by using a pressure test to check for leaks under load. By following these design guidelines, you can create watertight enclosures that meet the demanding requirements of various applications.
