How to Design for Minimal Support Structures in FDM Printing
Quick answer
How do you design FDM parts that need minimal support structures?
Supports in FDM printing add material, print time and post-processing, and can mark surfaces, so the goal is to design overhangs the printer can build on its own. Start with orientation: place the largest flat or most critical face on the build plate and rotate the part to minimize overhangs, using the slicer's overhang preview. Replace horizontal overhangs with chamfers; most FDM printers handle overhangs up to about 45 degrees from vertical without support. Gradual transitions help, and a chamfer usually prints better than a large fillet on a downward-facing edge.
Keep unsupported bridges short and use the slicer's bridging settings, which raise fan speed and lower print speed. Where overhangs cannot be avoided, consider splitting the model into parts that each print in a support-free orientation, then join them with pegs, dovetails or interlocking features. Splitting also makes any remaining supports easier to remove and allows different materials or colors for each part.
Need this part 3D printed?
Upload your CAD file and get an instant price for FDM, SLA, SLS or MJF. No minimum order, parts from 1 business day.
Optimize your 3D models for FDM printing by minimizing the need for support material, saving time and filament.
Understanding Support Structures in FDM
Fused Deposition Modeling (FDM) 3D printing builds objects layer by layer. Sometimes, parts of a design overhang empty space. These overhangs require support structures to prevent them from collapsing during printing. These supports act as temporary scaffolding, providing a base for subsequent layers. While essential for certain geometries, supports consume material, increase print time, and require post-processing for removal. Therefore, minimizing the need for supports is crucial for efficient and cost-effective FDM printing.
Different types of support structures exist, like tree supports and linear supports, each with its own advantages and disadvantages. The choice of support type often depends on the complexity of the geometry and the specific slicer software being used. However, the best approach is to design your model in a way that reduces or eliminates the need for any support structures in the first place.
This article will explore design strategies and techniques to achieve this goal. By understanding these principles, you can create models that are not only aesthetically pleasing but also optimized for efficient FDM printing.
Need this part 3D printed?
Upload your CAD file and get an instant price for FDM, SLA, SLS or MJF. No minimum order, parts from 1 business day.

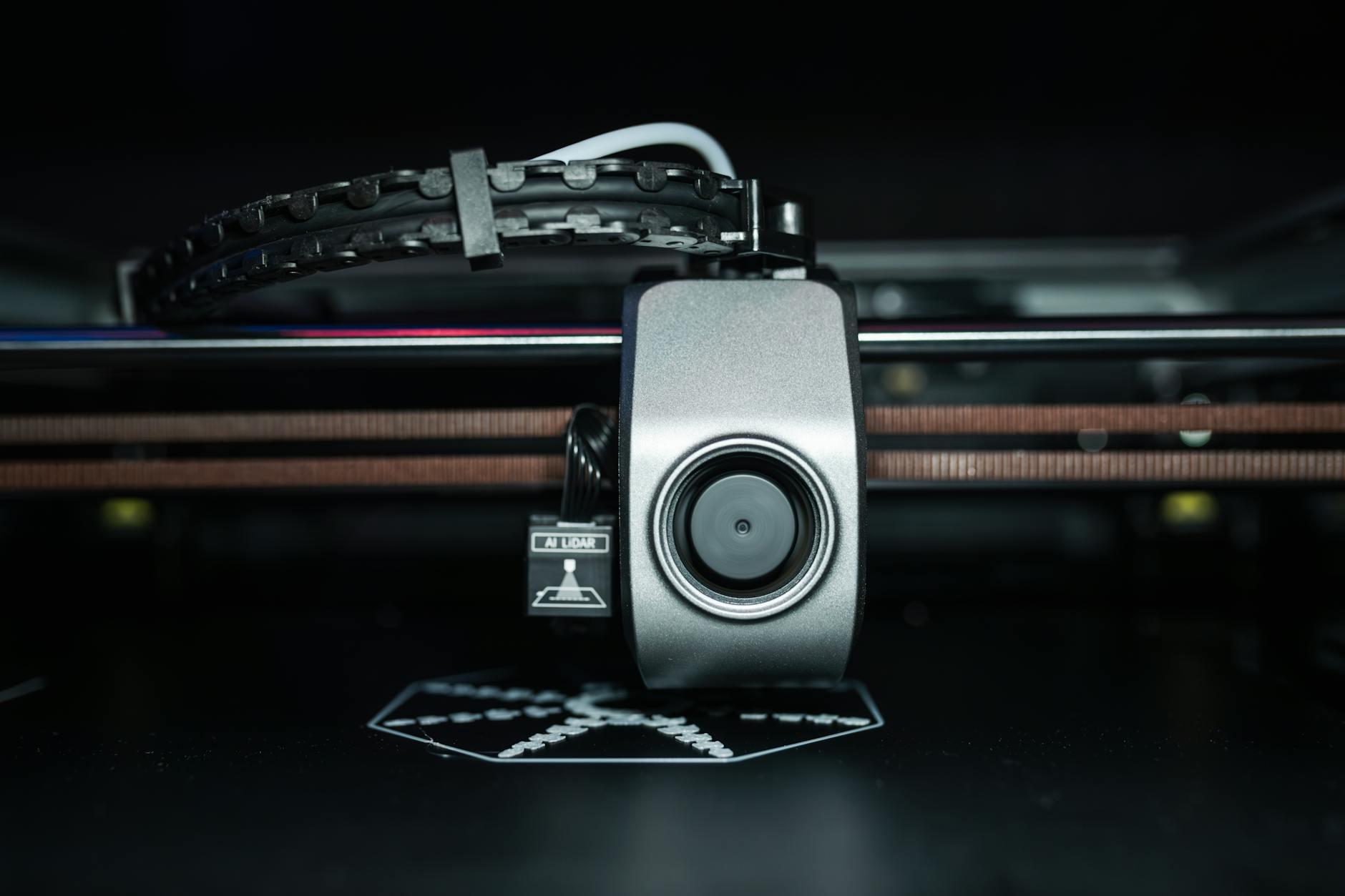

The Power of Orientation
One of the most impactful decisions you can make is choosing the right orientation for your part on the print bed. Consider which faces are most critical for surface finish and dimensional accuracy. Orient these faces downwards, towards the build plate, to avoid the need for support structures on those surfaces. Overhanging features are the primary drivers of support generation, so rotating your model to minimize these overhangs can dramatically reduce support usage.
For example, a model with a large flat surface on top would typically require extensive support structures if printed in that orientation. By rotating the model 90 degrees so the flat surface is vertical, you can eliminate the need for supports on that face. Analyze your model carefully, looking for areas that will require support. Experiment with different orientations in your slicer software to visualize the impact on support generation. Most slicers offer tools to highlight overhangs, making it easier to identify problematic areas.
Remember that the optimal orientation may not always be obvious. Consider the overall geometry of the part and the location of critical features when making your decision. Sometimes, a slight change in orientation can make a significant difference in the amount of support material required.
Geometric Considerations: Chamfers and Fillets
Sharp overhangs are the enemy of support-free printing. Incorporating chamfers and fillets into your design can significantly reduce the need for supports. A chamfer is an angled edge that replaces a sharp corner, while a fillet is a rounded edge. Both of these features can help to bridge small gaps and create a more gradual transition between layers, allowing the printer to successfully print overhangs without support.
For example, instead of a 90-degree overhang, consider adding a 45-degree chamfer. Many FDM printers can bridge small gaps at this angle without requiring support. Similarly, adding a fillet to the inside corner of an overhanging feature can provide additional support and prevent sagging. The size of the chamfer or fillet will depend on the printer’s capabilities and the material being used. Experiment with different sizes to find the optimal balance between support reduction and aesthetic appeal.
Beyond chamfers and fillets, consider the overall shape of your design. Avoid sharp, abrupt changes in geometry. Opt for gradual curves and smooth transitions whenever possible. These design choices will not only reduce the need for supports but also improve the overall strength and aesthetics of your printed part.
Bridging Techniques
Bridging refers to the ability of a 3D printer to print a horizontal span between two points without any support underneath. Most FDM printers have a limited bridging capability, meaning they can only bridge a certain distance before the material starts to sag. Understanding these limitations is crucial for designing support-free parts.
When designing bridges, keep the span as short as possible. If a long bridge is unavoidable, consider adding a slight arch to provide additional support. You can also use infill patterns to reinforce the bridge and prevent sagging. Experiment with different infill densities and patterns to find the optimal setting for your specific printer and material. Another technique is to design the bridge with a slight downward slope. This allows the printer to gradually build up the bridge, reducing the stress on the material.
Many slicer programs have specific settings for bridging, such as increased fan speed and reduced printing speed. These settings help to cool the material quickly and prevent sagging. Take advantage of these settings to improve the quality of your bridges and reduce the need for support structures.
Utilizing Infill for Support
While infill is primarily used to provide internal strength to a 3D printed part, it can also be strategically used to provide support for overhanging features. By increasing the infill density in certain areas, you can create a temporary support structure that can be easily removed after printing. This technique is particularly useful for small overhangs or areas where traditional support structures would be difficult to remove.
To use infill for support, you’ll need to carefully plan the infill pattern and density. Choose an infill pattern that provides adequate support without being too difficult to remove. Grid or rectilinear infill patterns are often a good choice. Increase the infill density in the areas where support is needed, and then gradually decrease the density in other areas to save material. Some slicer programs allow you to vary the infill density based on the height of the model, making it easier to create custom support structures.
Keep in mind that using infill for support can increase print time and material consumption. However, it can also be a more efficient and effective solution than traditional support structures in certain situations. Experiment with different infill settings to find the optimal balance between support, print time, and material usage.
Breaking Down Complex Geometries
Sometimes, despite your best efforts, a complex geometry will inevitably require some support structures. In these cases, consider breaking down the model into smaller, more manageable parts that can be printed separately and then assembled. This approach allows you to optimize the orientation of each part for minimal support usage. It also makes it easier to remove support structures from individual parts compared to a single, complex print.
When breaking down a model, carefully consider the assembly method. Use features like pegs and holes, dovetail joints, or interlocking features to ensure a strong and accurate connection between the parts. Design these features with the limitations of FDM printing in mind. For example, avoid small, intricate details that may be difficult to print or assemble. Also, make sure the assembly process is straightforward and intuitive.
Breaking down complex geometries can significantly reduce the need for support structures and improve the overall quality of your 3D prints. It also allows you to print parts in different materials or colors, adding even more flexibility to your design process.
Key Takeaways
- FDM support structures
- 3D printing support reduction
- FDM design tips
- Support-free 3D printing
- 3D printing design
- FDM printing
Written by the Prodimode engineering team. Last updated October 21, 2026. Questions about this topic or your part? Email contact@prodimode.com.
